Hytera PD402i
Cost-Effective. Rugged Reliability. Dual-Mode Operation.

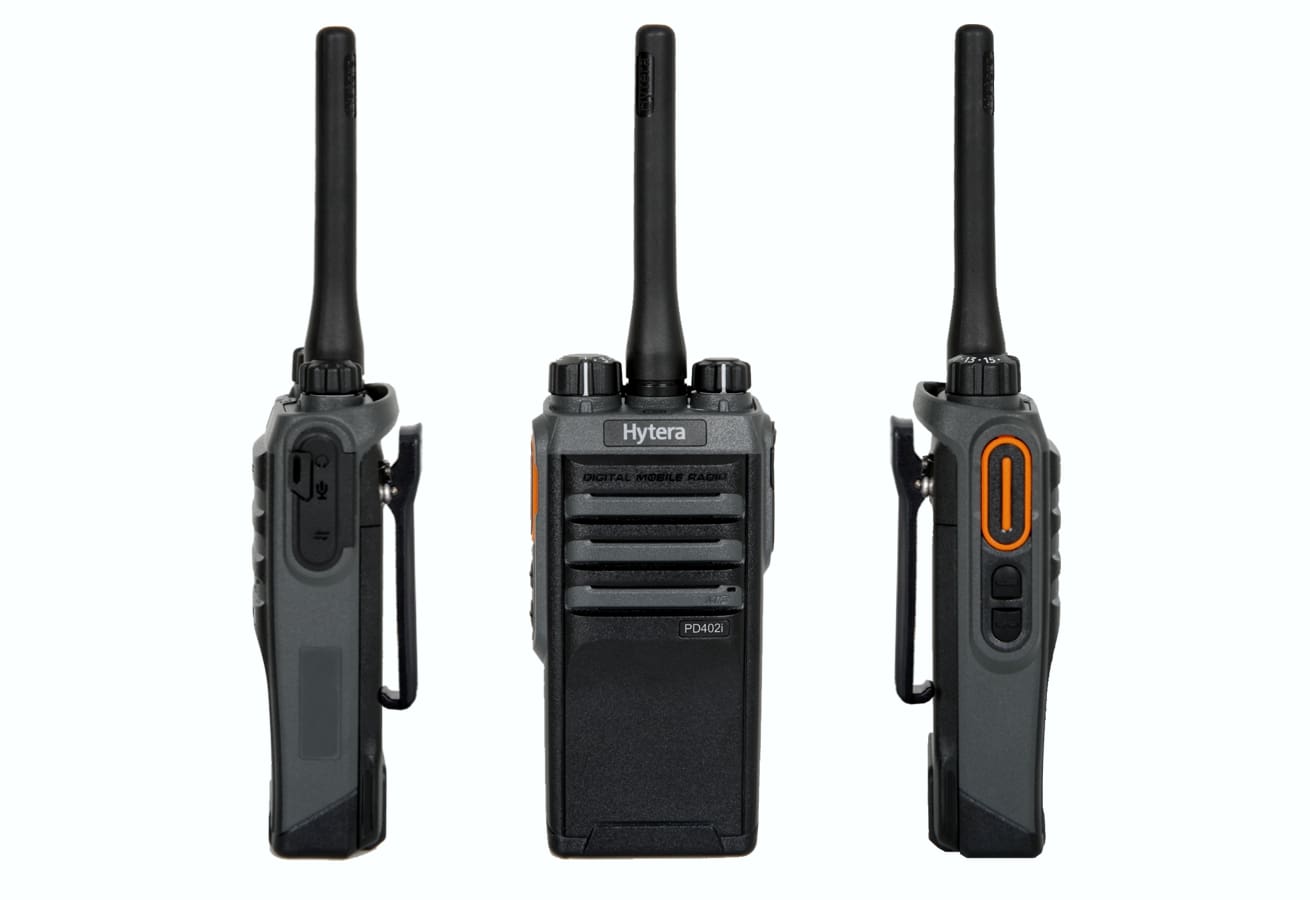

Hytera PD402i Commercial Digital Two-Way Radio
The Hytera PD402i UHF and VHF two-way DMR radios provide reliable and easy-to-use radio communications. Designed as a cost-effective solution with advanced features, this device functions in both digital and analog modes, making it the perfect upgrade path for growing businesses. With its robust build and high-quality audio, the PD402i delivers professional-grade connectivity without overcomplicating your daily operations.
RUGGED, RELIABLE, AND READY FOR ANY SHIFT.
Rotating Channel & Volume Control
Tactile PTT & Programmable Buttons
IP55 Rated Durability
Accessory & Data Port
Analog and Digital Operation
The PD402i operates seamlessly in both analog and digital modes.
This allows users to switch between the two modes for communication with older legacy analog radios.
It enables a simple and cost-effective migration path for businesses transitioning from analog to digital.
High-Quality Audio Output
An advanced audio equalizer actively adjusts low, mid, and high-frequency gain to optimize voice clarity.
It provides high-quality digital audio performance with loud and clear private calling, group calling, and all calls across your site.
Extended Long-Life Battery
The radio comes standard with a powerful Li-Ion 1500mAh battery.
This standard battery delivers up to 16 hours of continuous operation in digital mode and 12 hours in analog mode.
For longer shifts, an optional 2000mAh battery provides up to 22 hours of digital operation.
Advanced Network Capabilities
The PD402i is fully compatible and can be deployed on DMR Tier II systems. It features Pseudo Trunk, a virtual trunking feature that automatically uses whichever digital timeslot is free to improve call connectivity and frequency efficiency. Its Roaming capability allows the radio to seamlessly move between connected repeaters with non-stop voice transmission.
-
Emergency Response: Features one-touch Emergency Alarms that can be sent to other radios using the programmable button, greatly improving worker safety and emergency response times.
-
Digital Text Messaging: Supports one-touch sending of pre-programmed text messages, allowing users to store and send up to ten pre-defined text messages.
-
Extreme Durability: Compliant with strict MIL-STD-810-G standards for impact strength and durability, and handles operating temperatures from -22°F to +140°F (-30°C to +60°C).
-
Hands-Free VOX: Voice activated communications (VOX) activates the microphone by speaking to enable hands-free operation, which is also supported on external earpiece accessories.
| Feature | Specification |
| Frequency Range |
UHF 400-470MHz / VHF 136-174MH |
| Channel Capacity |
256 Channels (128 Analog, 128 Digital) |
| Zone Capacity |
3 Zones with 16 Channels per Zone |
| Dimensions |
4 13/32" x 2 1/8" x 1 3/32" (112 x 55 x 28mm) |
| Weight |
9.5oz (270g) |
| Battery Life (1500mAh) |
16 hours Digital, 12 hours Analog |
| Durability Ratings |
IP55 Standard & MIL-STD-810 C/D/E/F/G |
| RF Power Output |
VHF: High 5W / Low 1W — UHF: High 4W / Low 1W |
Custom Button Mapping
The programmable buttons on the PD402i offer incredible utility, but they must be configured properly before deployment.
We customize your radio's interface, mapping the programmable keys to trigger vital functions like one-touch emergency alarms or pre-programmed text messages, ensuring your team has instant access to the features they use most.
IP-Rated Audio Accessories
Because the PD402i is IP55 rated for water and dust resistance, pairing it with fragile accessories compromises its ruggedness.
We supply and configure heavy-duty accessories, such as the IP54-rated SM50M1 Remote Speaker Microphones, ensuring your entire communication ecosystem—from radio to lapel mic—can withstand challenging environmental conditions.
Mixed-Fleet Programming
If you are upgrading from older technology, we take full advantage of the PD402i's dual-mode analog and digital capabilities.
Our technicians will program your new digital units to perfectly match your existing analog frequencies, allowing your staff to communicate seamlessly across old and new devices while you execute a phased, cost-effective digital rollout.
Repeater Network Optimization
To maximize your coverage, the PD402i includes advanced systems features like Pseudo Trunk and Roaming. Our engineering team expertly configures these advanced network settings, allowing your radios to automatically locate free digital timeslots and seamlessly jump between repeaters as your workforce moves across large, multi-site facilities.
How Teltra Can Help
Upgrading to a digital communications system is a major step forward in clarity and efficiency, and the Hytera PD402i makes that transition seamless. At Teltra, we act as your dedicated engineering partner to ensure you get the absolute most out of this hardware. From mapping out custom emergency alarms and text messages to optimizing your digital repeater networks for seamless roaming, we fully program and rigorously test your new fleet so it arrives at your facility ready to work from day one.
Ready to talk?
Contact Teltra today to discuss your hardware needs and learn more about compliance requirements for your next deployment.
