Hytera HP782
High-Definition Color Display. Conversational SMS. Ultimate Fleet Control.

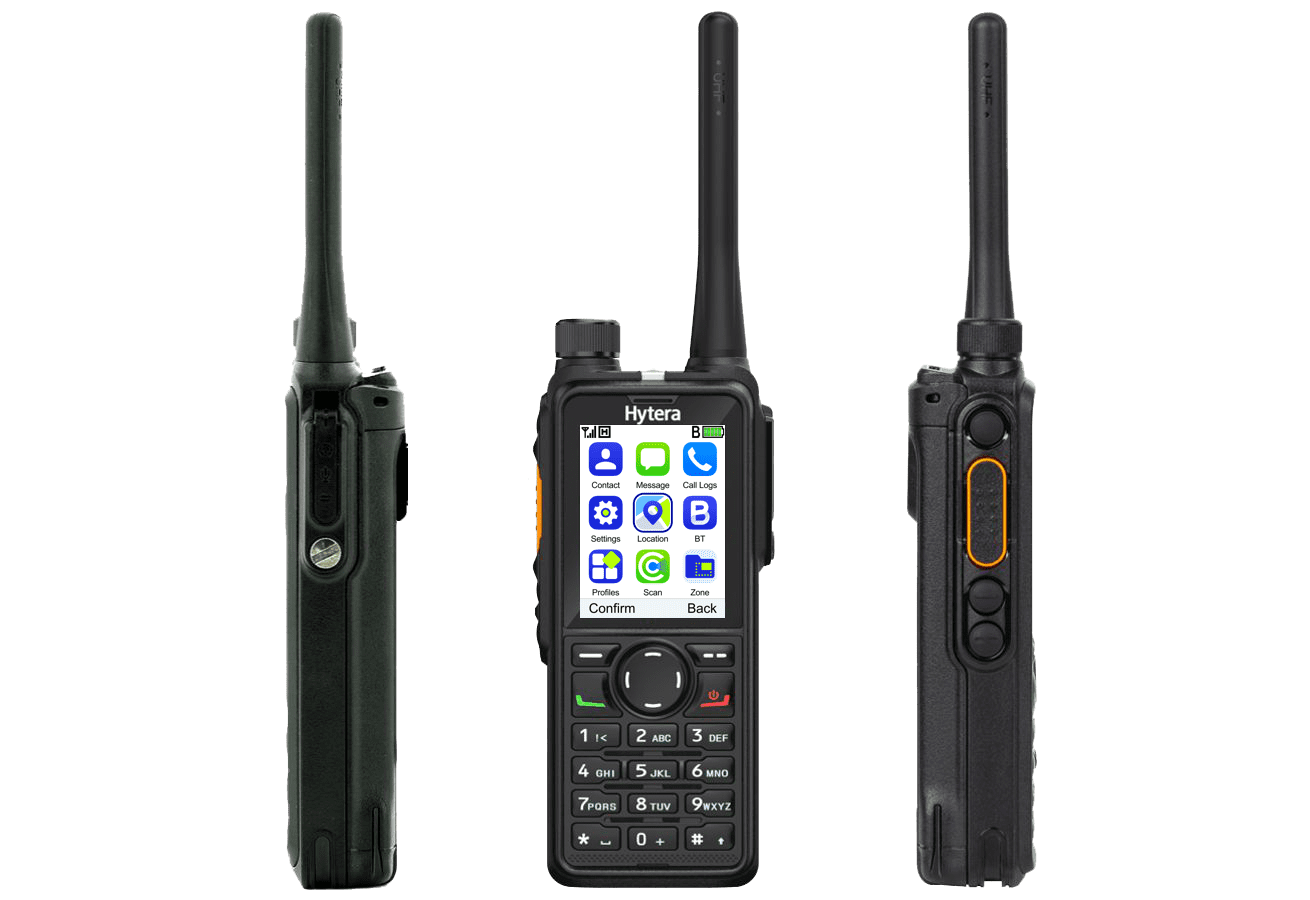

Hytera HP782 Professional Full-Keypad DMR Radio
The Hytera HP782 is a next-generation professional digital two-way radio that elevates the industry standards for creative style, performance, and functionality. As the flagship full-keypad model of the elite H-Series, it provides an exceptionally efficient and data-rich communication experience. Combining a bright 2.4-inch high-definition color screen with a wear-resistant interface, the HP782 provides supervisors, logistical managers, and public safety teams with the manual dialing flexibility, situational awareness, and rugged reliability required to coordinate complex operations.
EXPAND YOUR FACILITY footprint WITH 25% GREATER BUILDING PENETRATION.
360° Smart Knob
Wear-Resistant Full Keypad
2.4' HD TFT-LCD Color Screen
IP68 Submersible Reinforced Housing
Clear HD Color Display & Notifications
The HP782 features an ultra-bright 2.4-inch HD TFT-LCD screen supporting up to 262,000 colors, remaining clearly visible even under direct sunlight. Its main home screen uses a simplified nine-grid application layout for intuitive visual recognition, displaying the current time, contact alias, and dual simultaneous notification windows. Personnel can view instant alerts for emergency signals, missed calls, and incoming messages with real-time status details directly on the main interface.
Conversational SMS Text Messaging
Take absolute command of your facility data with freeform text messaging enabled by the full-keypad configuration. Incoming short messages are automatically arranged and displayed on the HD screen in a conversational dialog box format alongside sender details. This interactive, smartphone-style texting interface makes it highly simple and efficient for users to compose custom text threads or preview critical messages on the move.
Dynamic Calling & DTMF Access Control
Execute field transmissions swiftly with a manual dialing layout that seamlessly supports selection of private calls, group communications, fast dials, and phone line systems. Users can type in an alias or contact ID on the fly without switching their primary dialing mode, monitoring call durations and transfer status instantly. Furthermore, operators can use the keypad to manually broadcast analog DTMF signals or transmit up to 256 stored, pre-programmed DTMF strings to actuate physical security gates, motorized garage doors, or utility infrastructure valves.
AI-Based Noise Suppression & Audio Integrity
Enjoy crystal-clear voice clarity through an optimized forward-facing speaker driven by deep-learning intelligence. The system isolates human vocal lines from intense environmental noise in real time, reducing background distractions by up to 30dB. To preserve message delivery, built-in acoustic feedback suppression stops screeching howling loops when multiple crew members operate radios close together, while patented water-porting tech quickly drains liquid from the speaker cavity.
-
Thinner and Lighter Form Factor: Advanced mechanical design and composite materials yield a full-keypad commercial radio that is only 29.5mm thick and weighs less than 11 ounces
. -
24-Hour Shift Life Power: Employs premium lithium polymer battery technology to achieve a reliable shift life of up to 24 hours on high transmit power with GPS disabled, or 20 hours with GPS active
. -
25% Greater Signal Penetration: Maximizes communication range and structural wall penetration through improved antenna gain, elevated receiver sensitivity (-122dBm), and lower signal attenuation
. -
Proactive Remote Worker Protection: Houses life-safety features including an easy-access orange emergency button, emergency calling, priority call interrupt, Lone Worker check-ins, and automated Man Down tilt sensors
. -
Anti-Magnetic Speaker Safety: Formulated with a specialized audio driver that will not attract airborne magnetic metal dust, flakes, or iron shavings, preserving acoustic performance in fabrication yards
. -
High-Security Data Encryption: Safeguards private operational data via integrated digital end-to-end and over-the-air encryption keys utilizing secure ARC4 and AES software algorithms
. -
Over-the-Air Stun and Kill: Allows system administrators to transmit an immediate over-the-air command to cleanly stun or permanently kill a lost or stolen unit, completely stopping unauthorized access
. -
Multi-System Fleet Roaming: Deploys flawlessly across standard Conventional Analog/Digital channels, MPT and XPT Trunking, DMR Tier II and Tier III Trunking, IP Multi-Site Connect, and Simulcast architectures
. -
Built-In Bluetooth 5.0: Integrated Bluetooth 5.0 BLE+EDR supports rapid data synchronization and reliable wireless pairing with hands-free audio earpieces and microphones
.
| Feature | Specification |
| Frequency Range |
UHF: 350-470MHz / VHF: 136-174MHz |
| Channel Capacity |
1,024 Channels (512 Analog, 512 Digital) |
| Zone Capacity |
64 Zones (Up to 256 Channels per Zone) |
| Dimensions (H x W x D) |
5 3/16" x 2 5/32" x 1 7/32" (132 x 55 x 29.5mm) without antenna |
| Weight |
10.93 oz (310g) with standard battery and antenna |
| Display Specifications |
2.4" HD TFT-LCD Screen, 320x240 pixels, 262,000 colors, 10 rows |
| Battery Type |
2400mAh Lithium Polymer Battery |
| Battery Runtime (5/5/90) |
24 Hours (GPS Disabled) / 20 Hours (GPS Enabled) |
| Durability Ratings |
IP68 Dust & Waterproof Standard / MIL-STD-810 C/D/E/F/G |
| RF Power Output |
VHF: 5W High, 1W Low / UHF: 4W High, 1W Low |
| Digital Vocoder Type |
AMBE+2M |
Conversational SMS Library Engineering
While the conversational SMS dialog layout of the HP782 allows for fully flexible freeform typing, typing text out manually key-by-key during a busy shift or emergency situation isn't always practical. Teltra streamlines your data communications. Our technicians can pre-program and hard-code up to ten customized, industry-specific quick text templates directly into your devices. This gives your team instant, one-touch notification paths to push status updates across your fleet without manually drafting a single word.
Scenaric User Profile Provisioning
The HP782 features an Interface Switcher and four distinct User Profiles to automatically balance alert tones, volume steps, and silent vibration feedback. We customize these layers to match your exact working scenarios. Before delivery, our programming team establishes your operational profiles—ensuring maximum volume settings with active AI filtering for loud outdoor areas, medium alerts with silent vibration for interior offices, and total audio silencing for executive boardrooms.
DTMF Hardware Automation Matrix
The ability to transmit manual or pre-stored DTMF tonal strings directly from the wear-resistant keys transforms the HP782 handheld into an intelligent wireless remote control for your facility. We bridge your communications with your infrastructure. Our engineering department programs up to 256 unique DTMF strings into your radio firmware, pairing them directly to your facility's physical gate controllers, motorized security doors, or localized machinery relays to automate daily site operations smoothly.
Tier III Trunking & Advanced Data Security
Transitioning a growing enterprise to high-capacity networks like DMR Tier III Trunking or wide-area IP Multi-Site connects requires sophisticated network architecture. Teltra serves as your technology coordinators. We construct detailed software codeplugs for your 1,024-channel fleet, establishing smooth repeater roaming boundaries. We load hardware encryption files via the radio's internal card, configure AES software security keys, and map secure over-the-air Stun and Kill commands to lock down misplaced assets immediately.
How Teltra Can Help
Upgrading your enterprise communications to a premier, full-keypad digital asset like the Hytera HP782 equips your personnel with a sunlight-readable color interface, conversational text threads, and direct telephone system integration
Ready to talk?
Contact Teltra today to discuss your hardware needs and learn more about compliance requirements for your next deployment.
